BENDING AND ROLLING
THE COMPLETE RANGE
BENDING AND ROLLING
THE COMPLETE RANGE
FOR TINSMITHING
TECHNOLOGY DERIVED FROM SYNCHRONIZED PRESS BRAKES
Warcom tinsmithing machines are based on technology derived from synchronized press brakes, adapted to the specific needs of the sector.

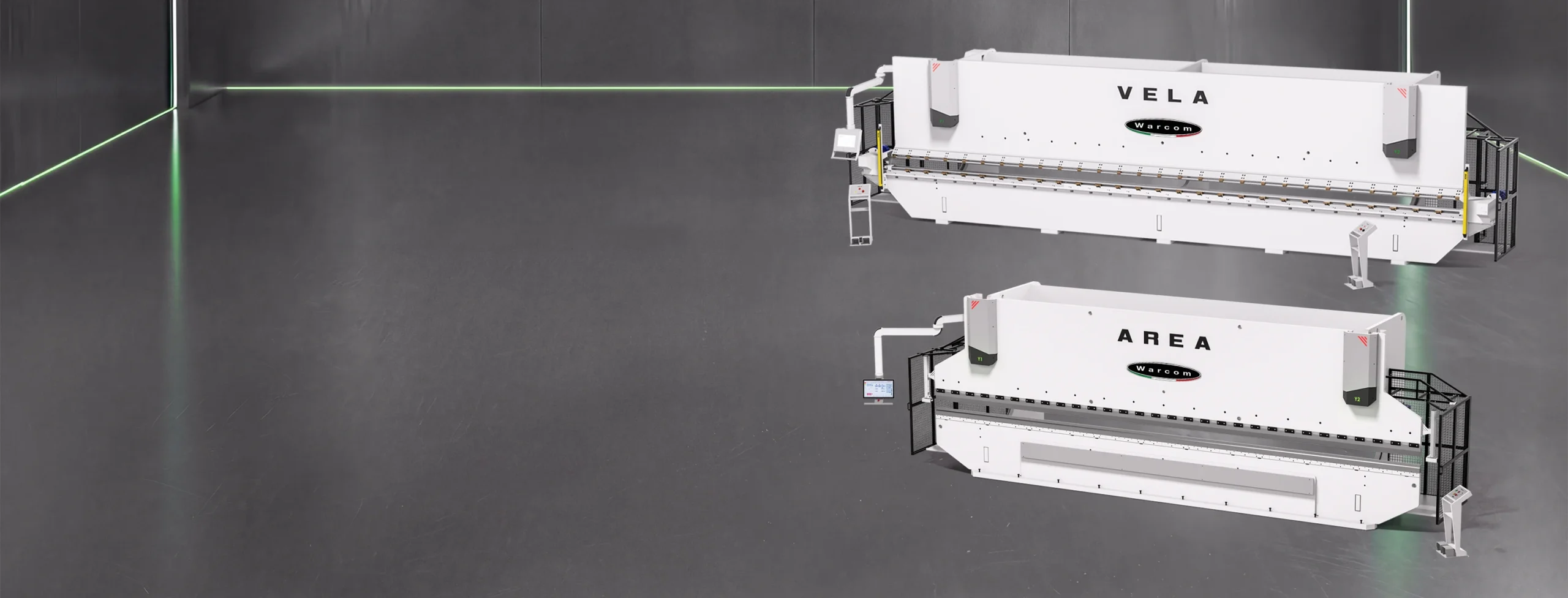

- AREA is the press brake specifically designed for tinsmithing, featuring a robust electro-welded two-column structure;
- VELA is a synchronized hydraulic roll-press brake with a three-column structure.
Both are available in three lengths: 6.5, 8.5 and 10.5 m.
Made in Italy
LARGE THROAT DEPTH
Direct assistance
THE WARCOM TINSMITHING RANGE
Two synchronized machines designed around the real needs of the sheet metal worker: the AREA press brake, with two-column structure and integrated hemming tool, and the VELA synchronized hydraulic roll-press brake, with three-column structure and three-roll bending device. Both available from 6.5 to 10.5 meters of working length, with large throat depth as standard and customizable configurations based on the processing requirements.
Vela
TINSMITHING ROLL-PRESS BRAKE
from 60 to 100 ton · thickness 0.5–1.5 mm
Discover moreWhich machine is right for you?
Talk to a consultant| Area | Vela | |
|---|---|---|
| Type | Press brake | Calender press |
| Structure | Two electro-welded uprights | Three uprights |
| Max force | 80 · 100 · 160 ton | 60 · 80 · 100 ton |
| Working length | 6.5 · 8.5 · 10.5 m | 6.5 · 8.5 · 10.5 m |
| Throat depth | 750 mm | 750 mm · 1.000 mm central |
| Thicknesses | According to tonnage | 0.5 – 1.5 mm |
| Distinctive features | Crush bending and curving | Three-roll calendering |
FREQUENTLY ASKED QUESTIONS
What is the difference between AREA and VELA?
AREA is a tinsmithing press brake with a two-column structure, specifically designed for bending sheet metal parts and equipped with an integrated hemming die.
VELA is a three-column synchronized hydraulic roll-press brake, with a height-adjustable upper roll and two laterally adjustable lower rolls, designed for producing rolled sheet metal parts.
What sheet thicknesses can the VELA roll-press brake process?
VELA can process sheet thicknesses from 0.5 to 1.5 mm. Its three-roll forming device features a height-adjustable upper roll and two laterally adjustable lower rolls, with a roll diameter of 45 mm and a distance between rollers of 130 mm.
What is the integrated hemming die?
The integrated hemming die allows hemming operations to be performed directly on the AREA press brake, without the need for separate external equipment. The PN 30 pneumatic hemming die is supplied as standard and provides a 30 mm counter-bend. The PN 15 integrated pneumatic hemming die, with a 15 mm counter-bend, is available as an option.
