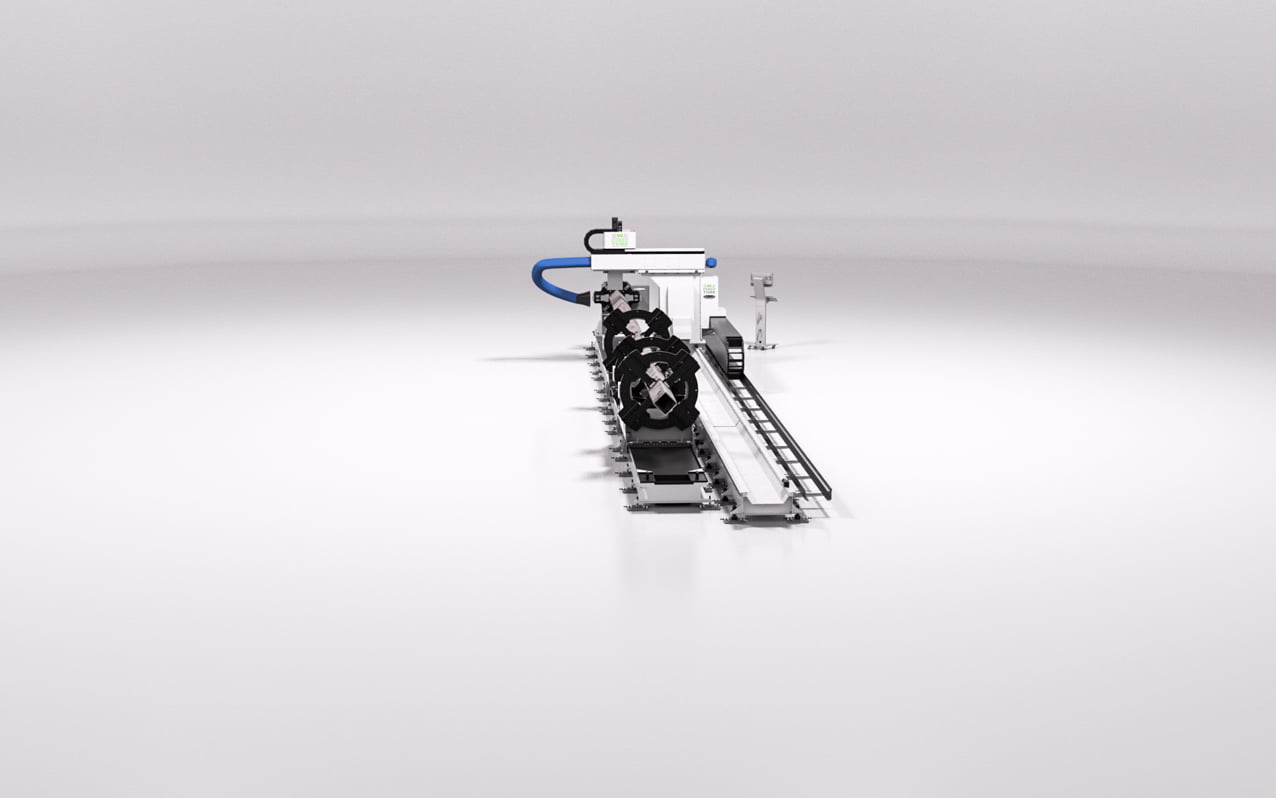

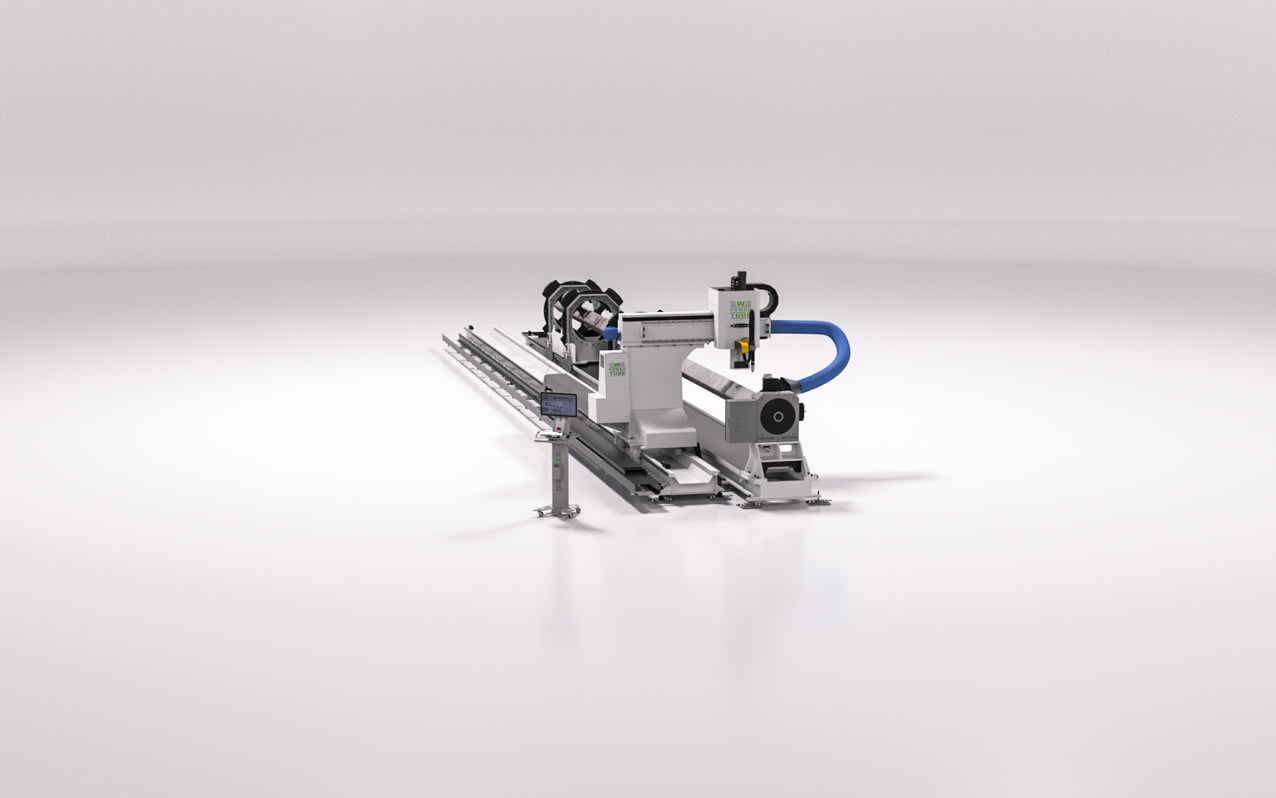

W-TUBE SERIES Plasma Tube Cutting Machine
for large diameters and heavy-duty work
REQUEST A QUOTE
REQUEST CATALOGUE
Plasma Tube Cutting for
Heavy Wall and
Large Diameters

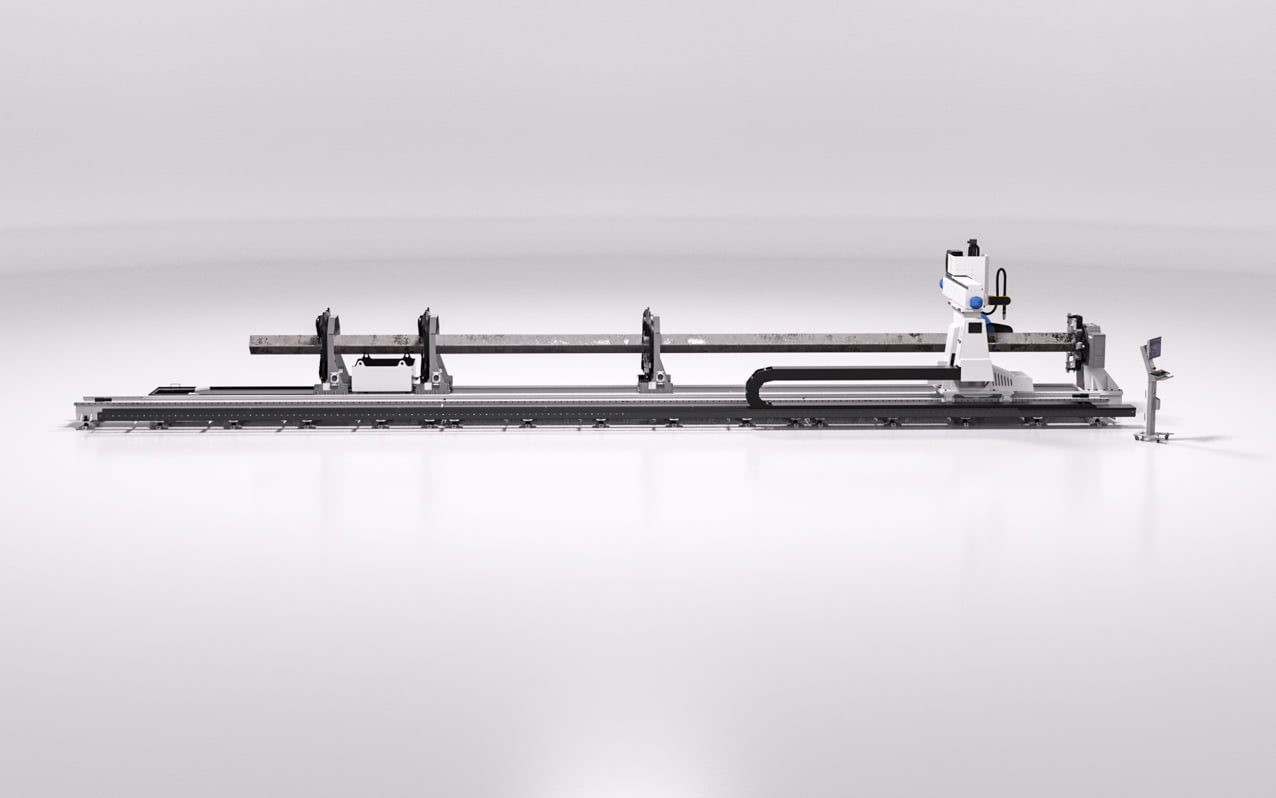

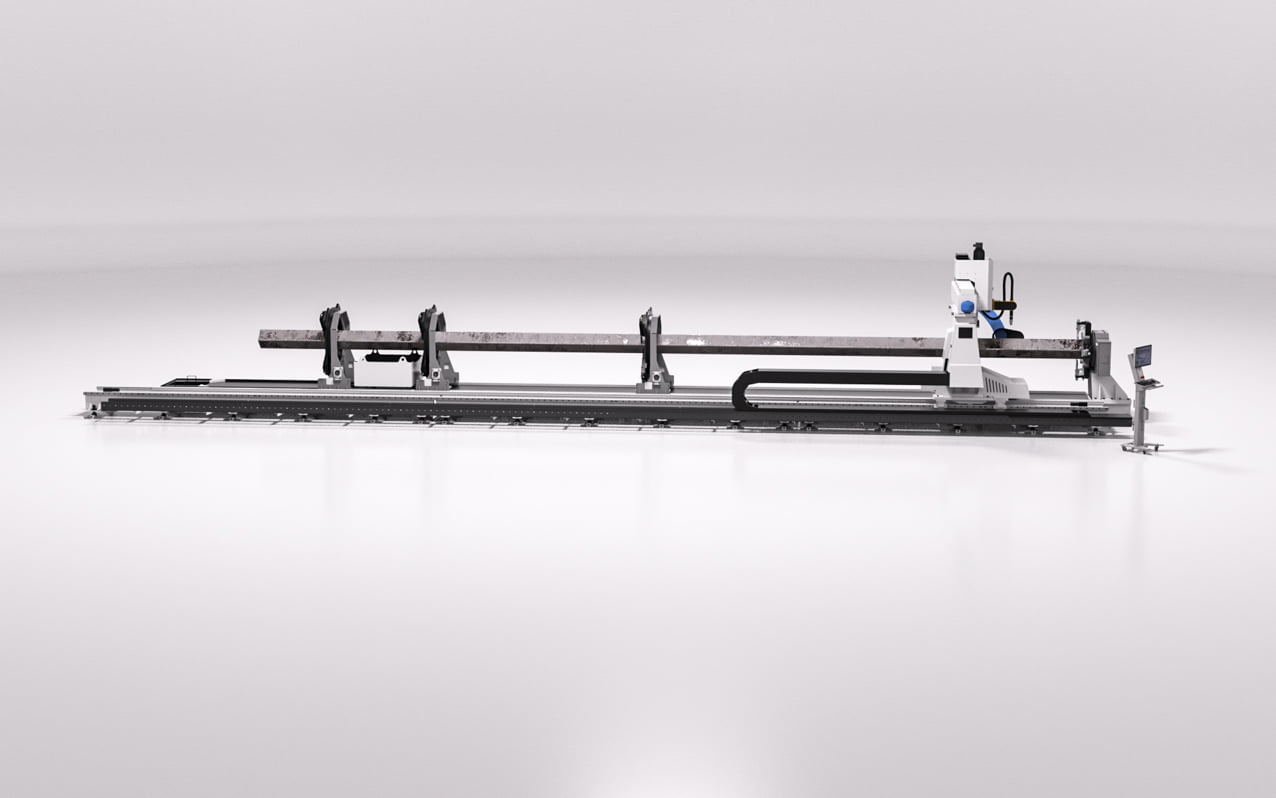

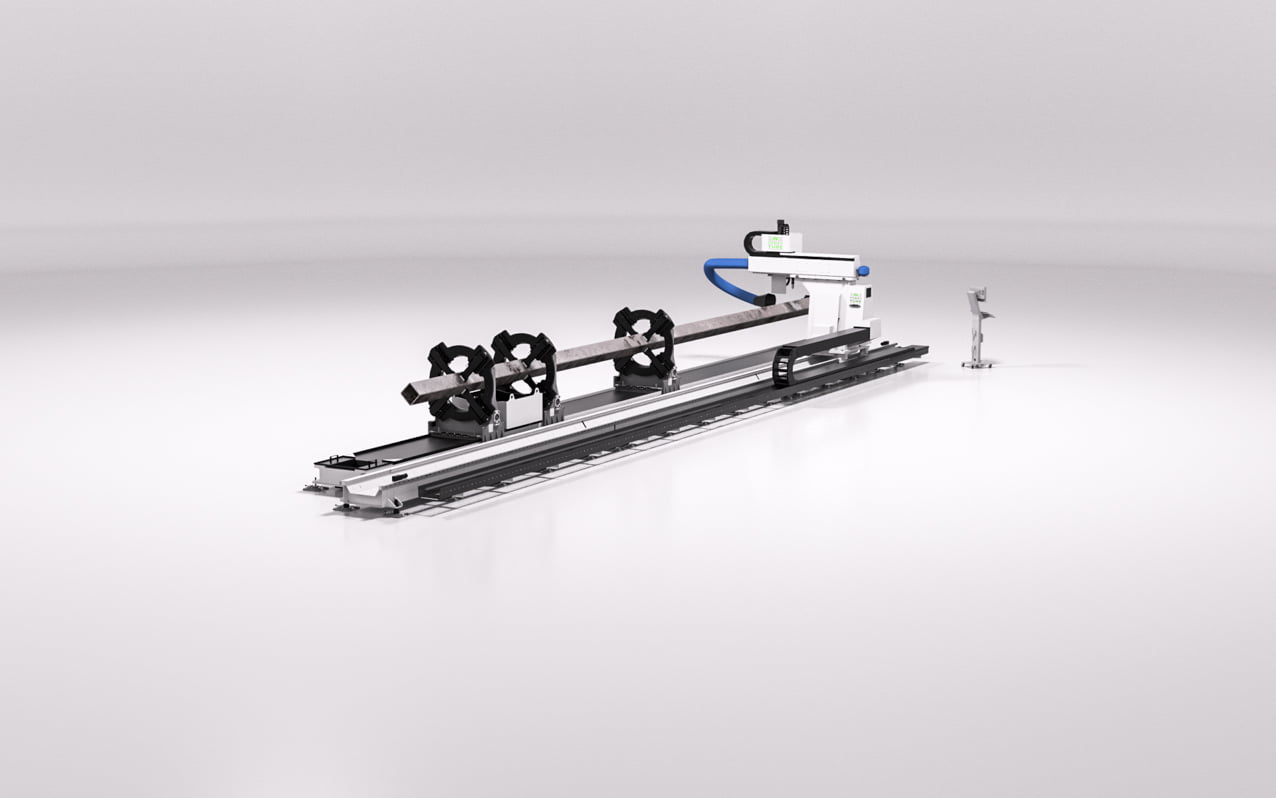

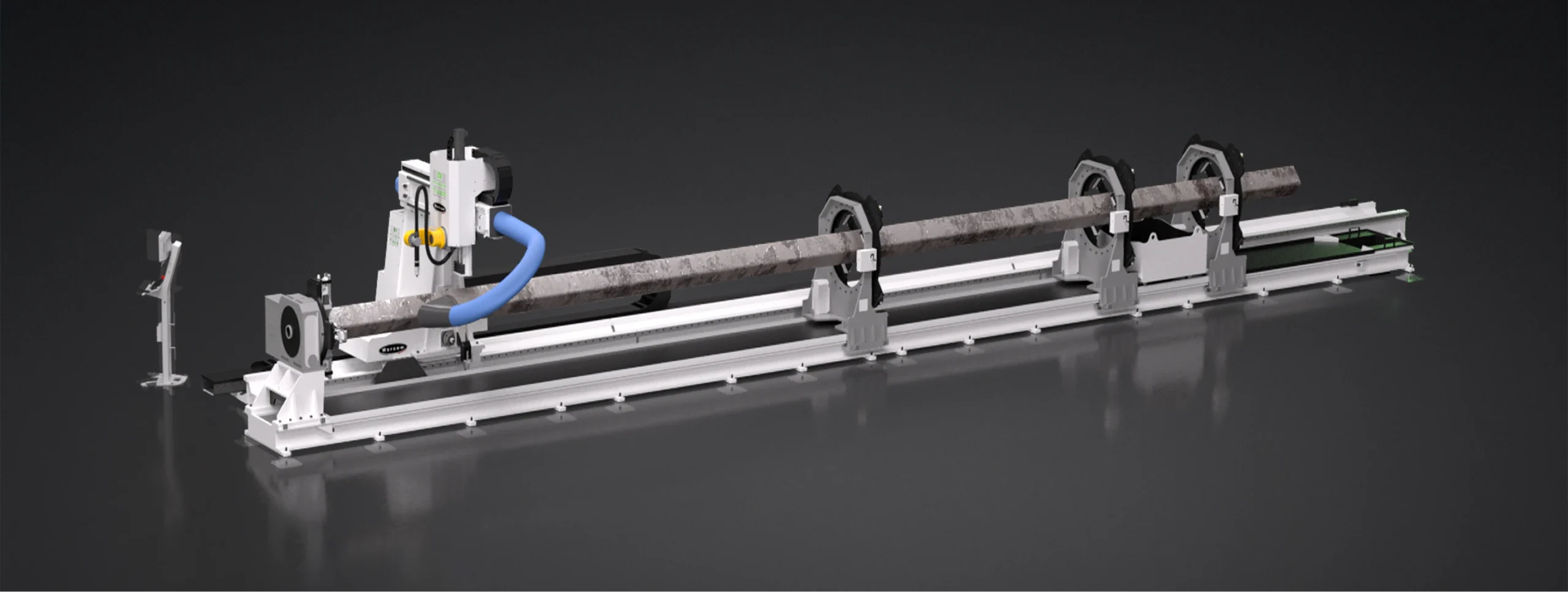

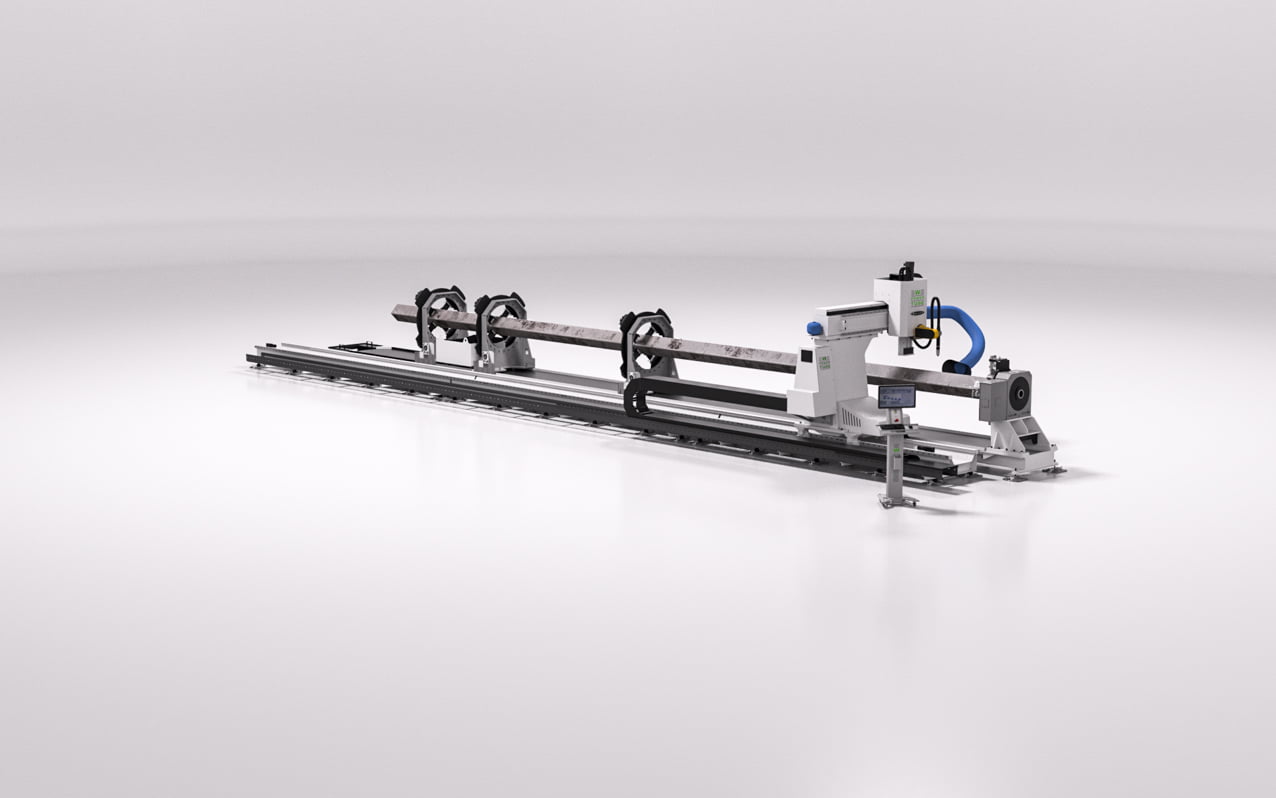

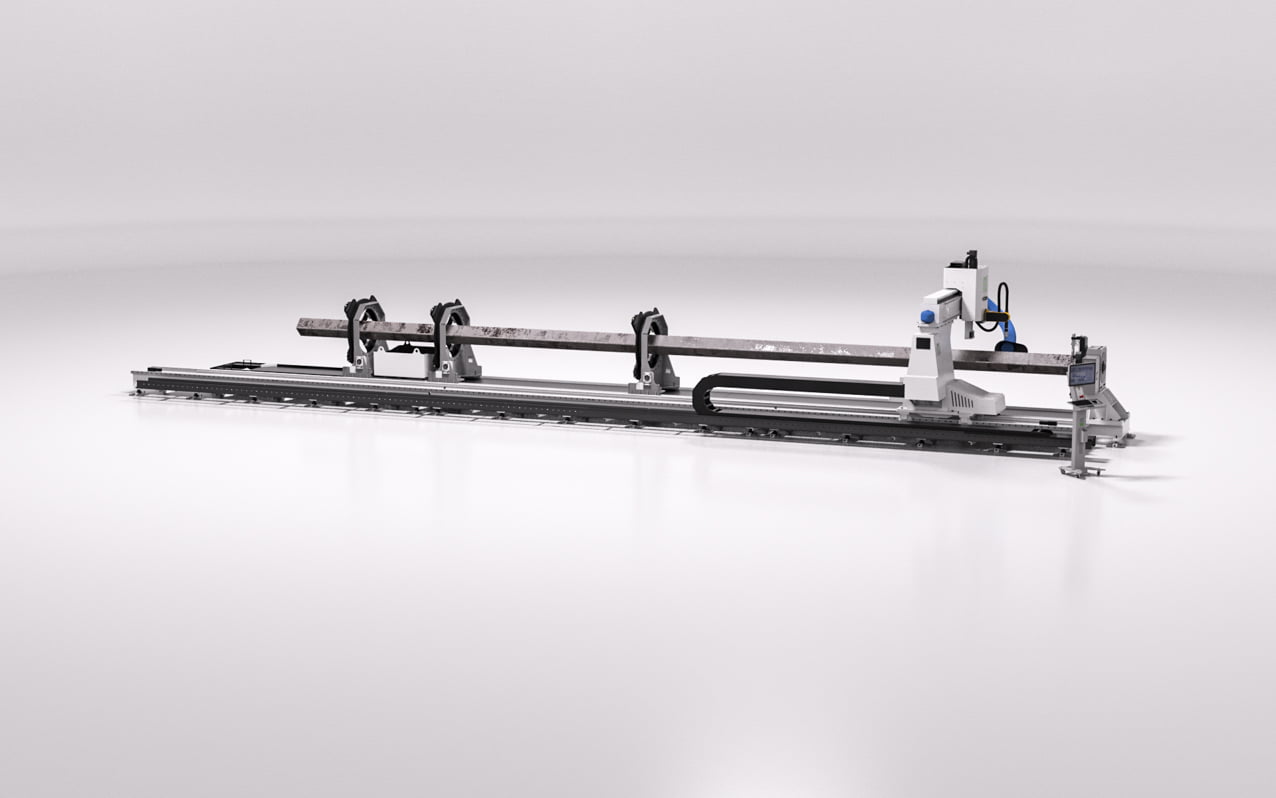

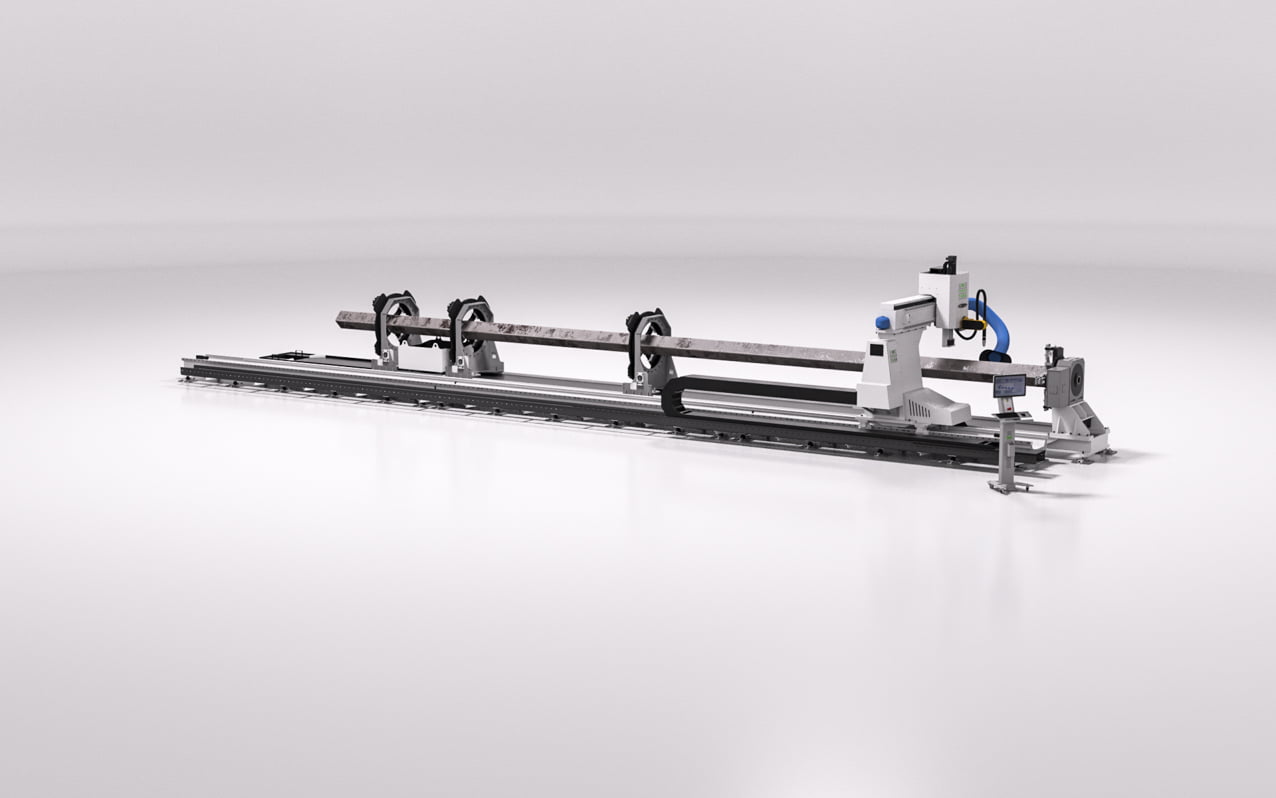

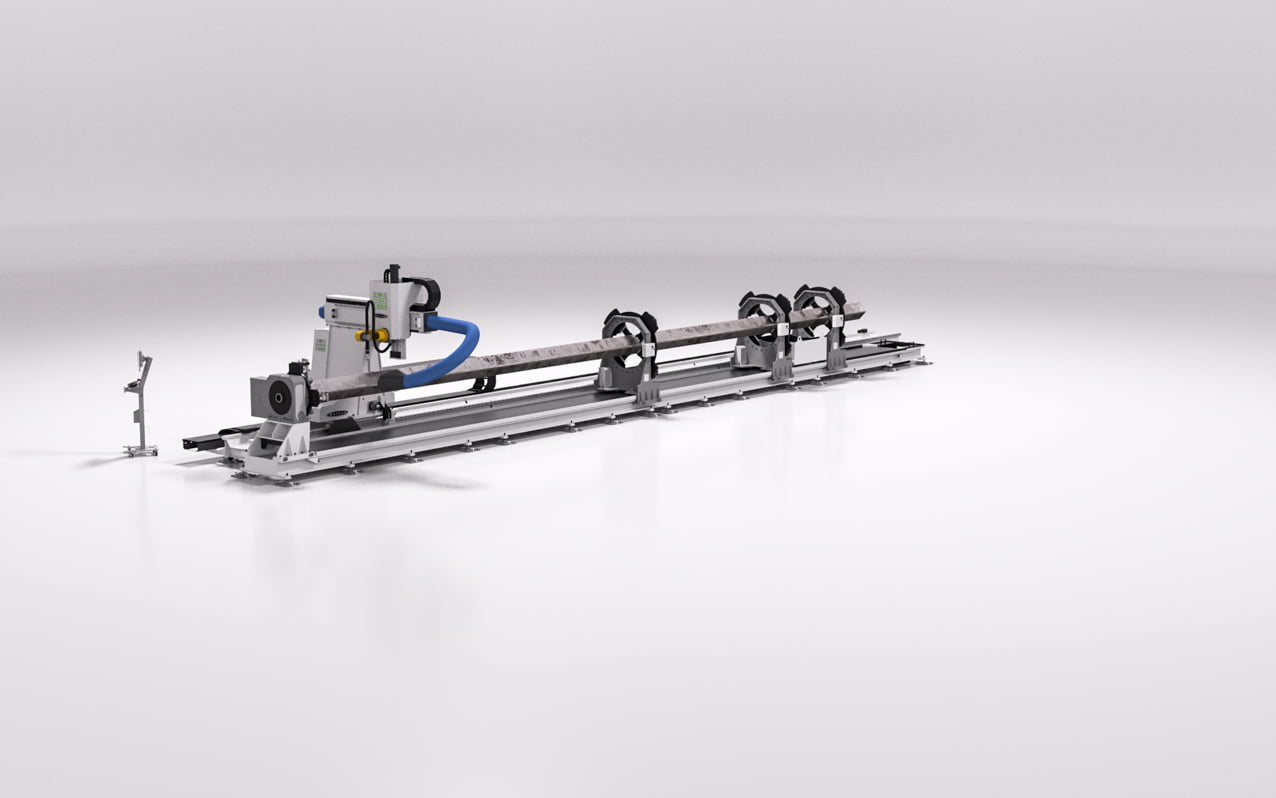

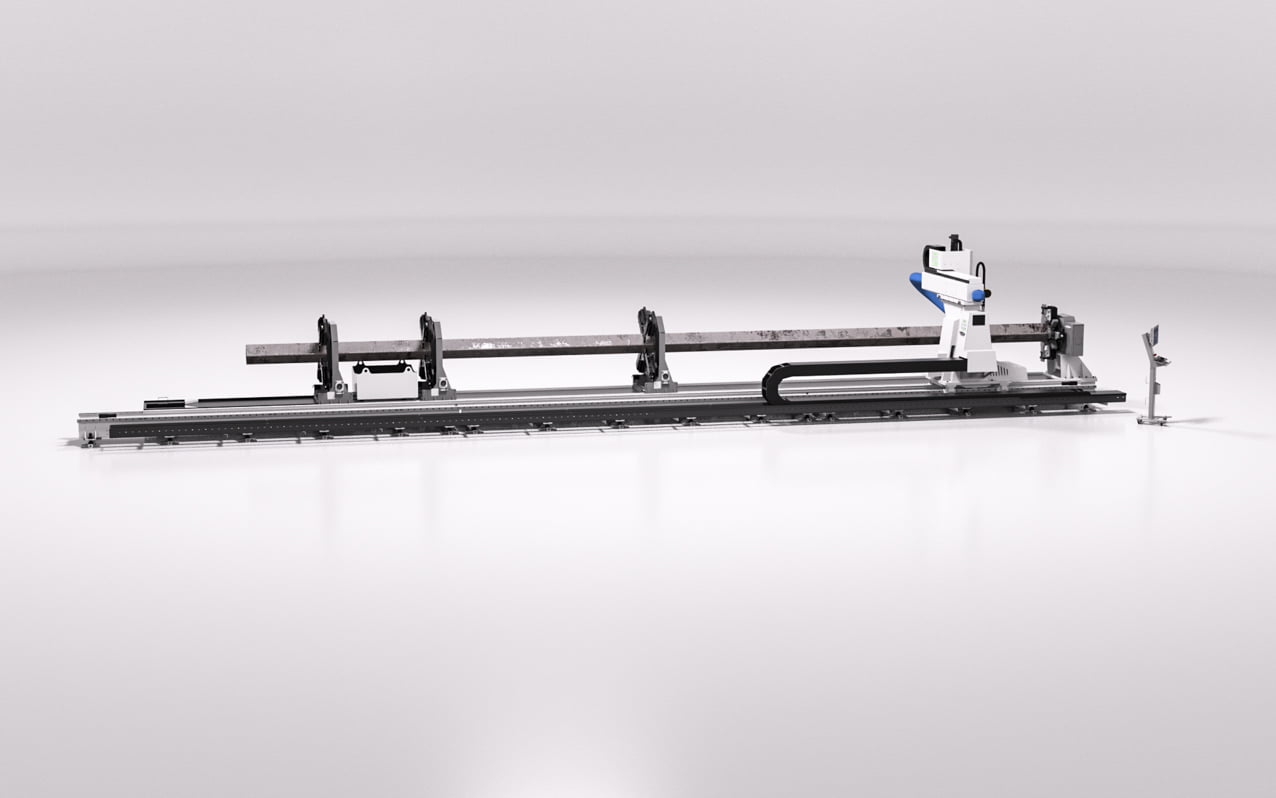

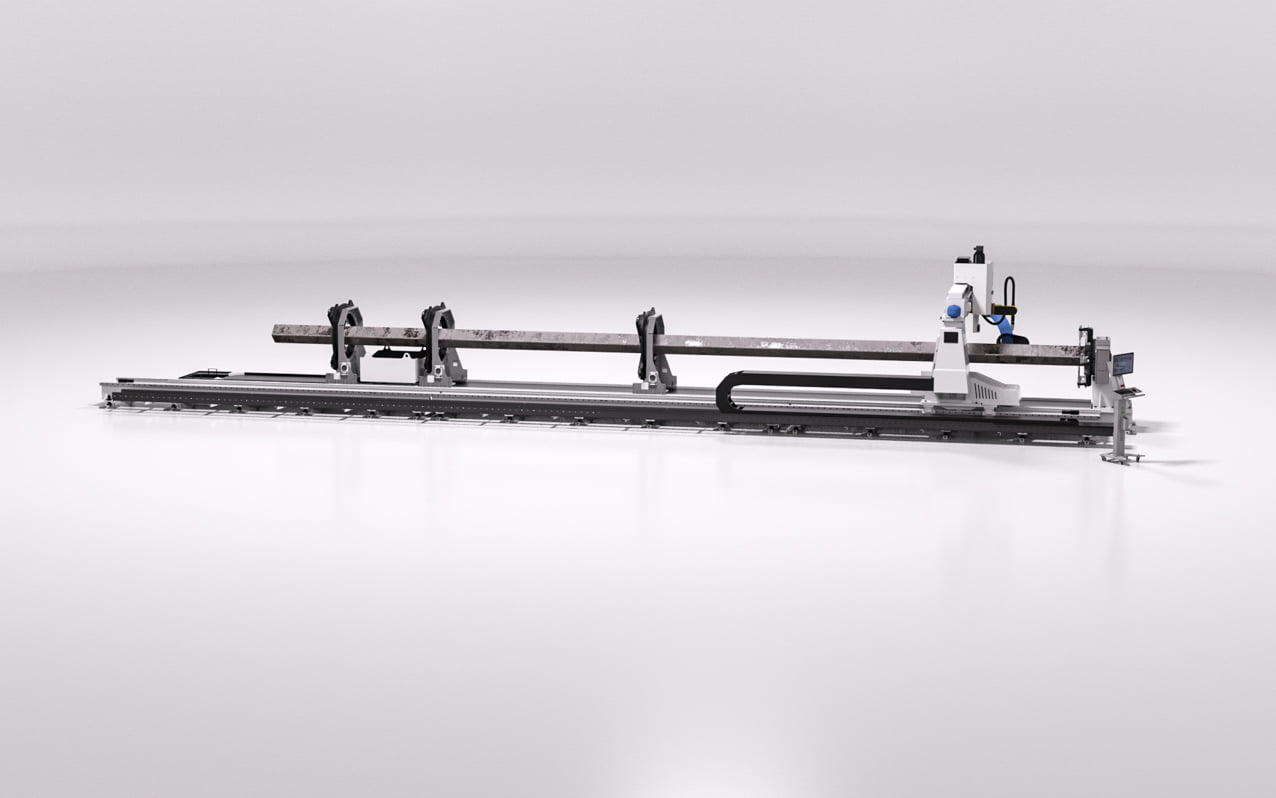

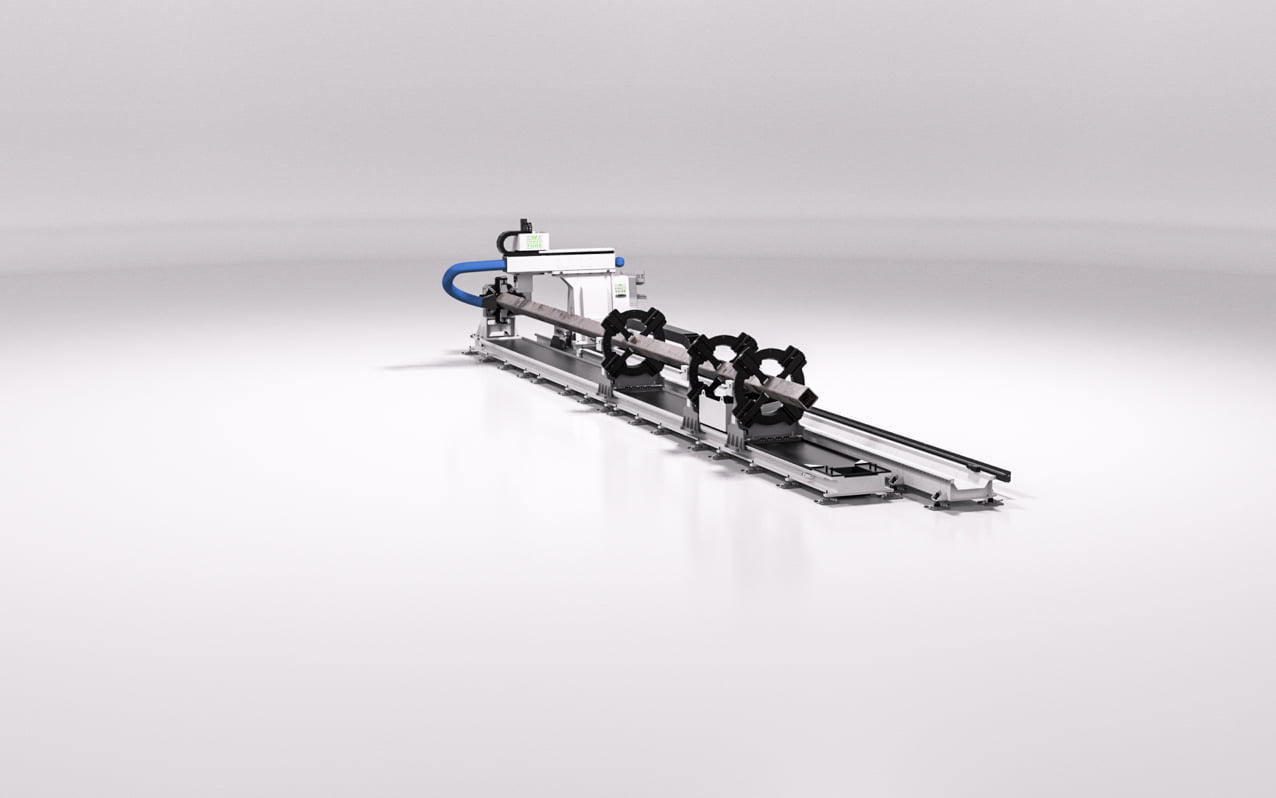

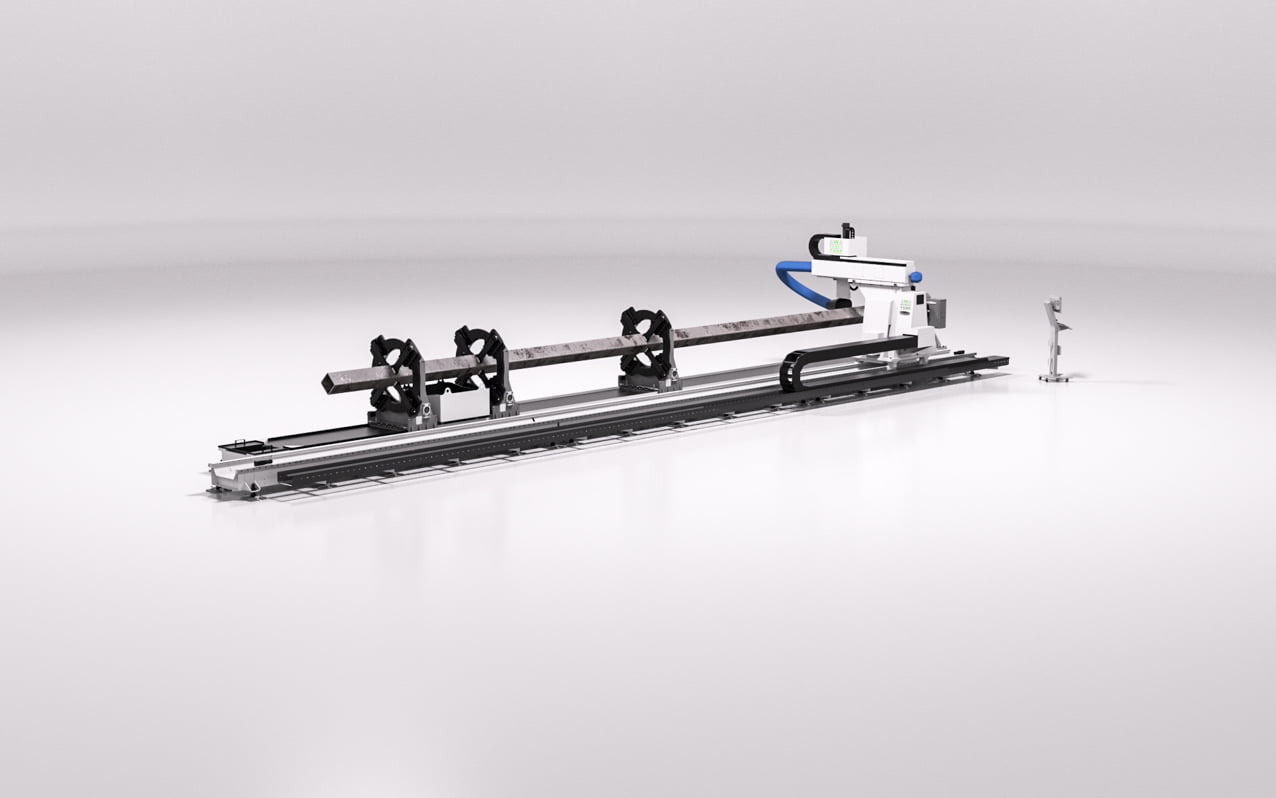

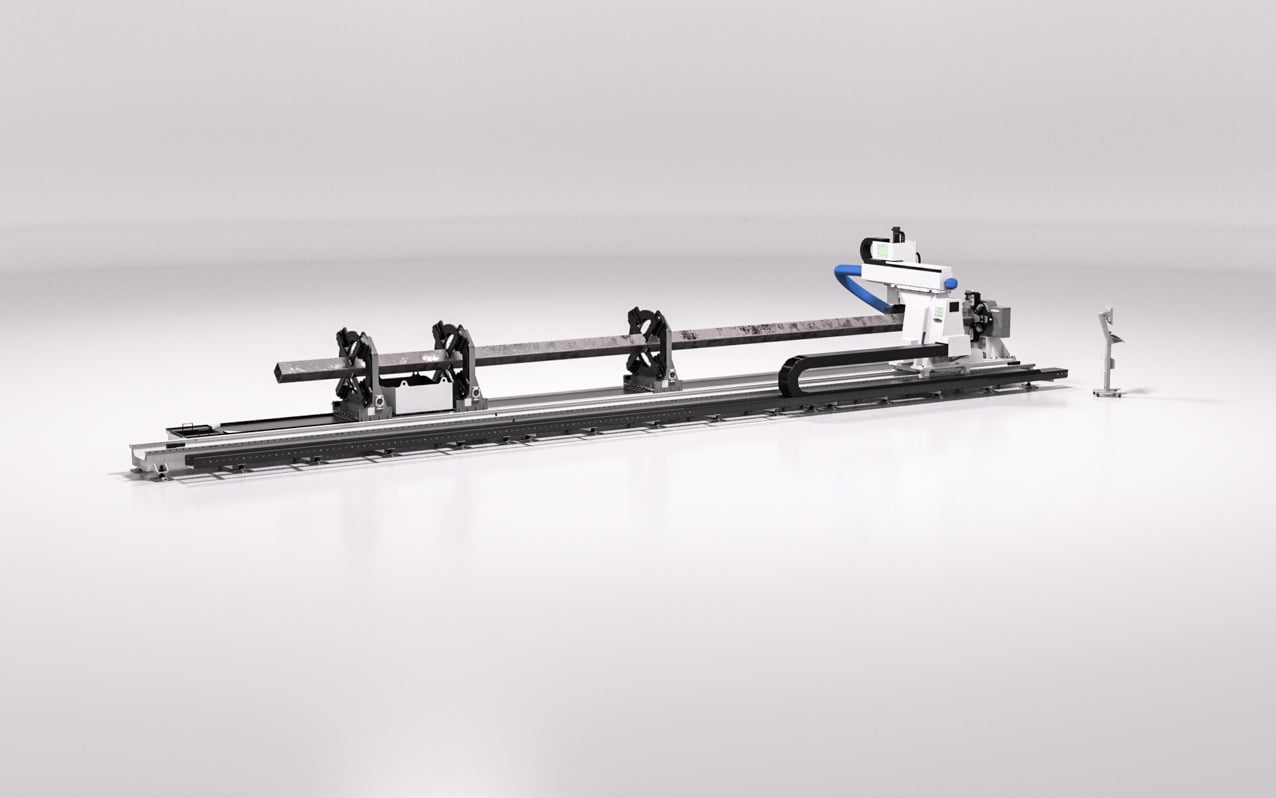

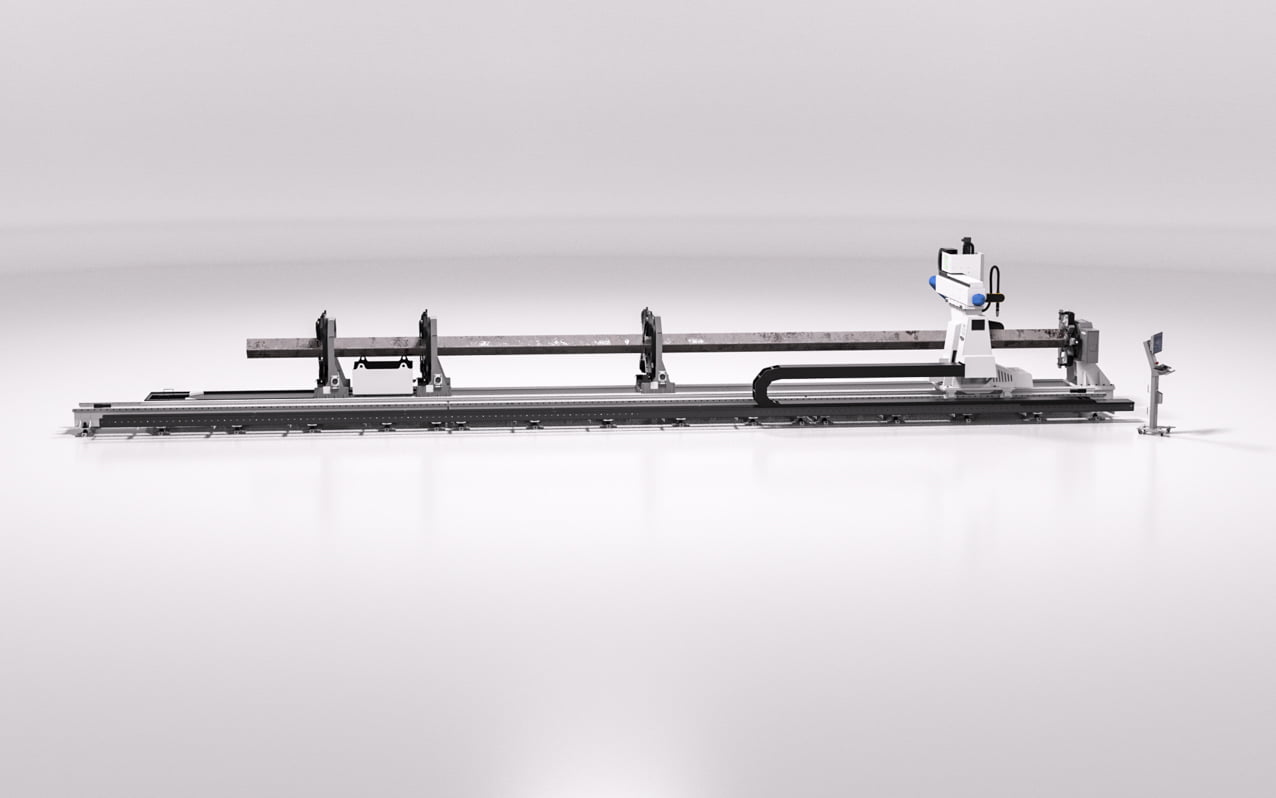

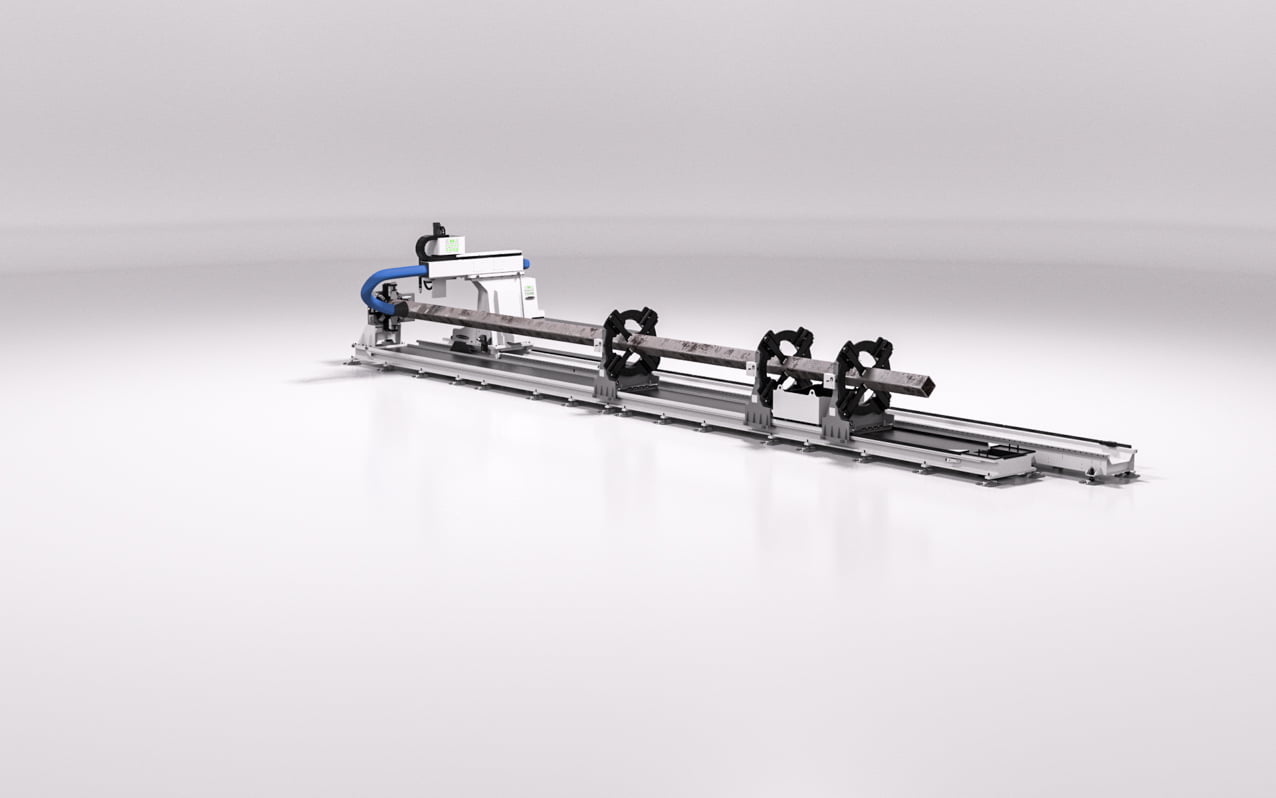

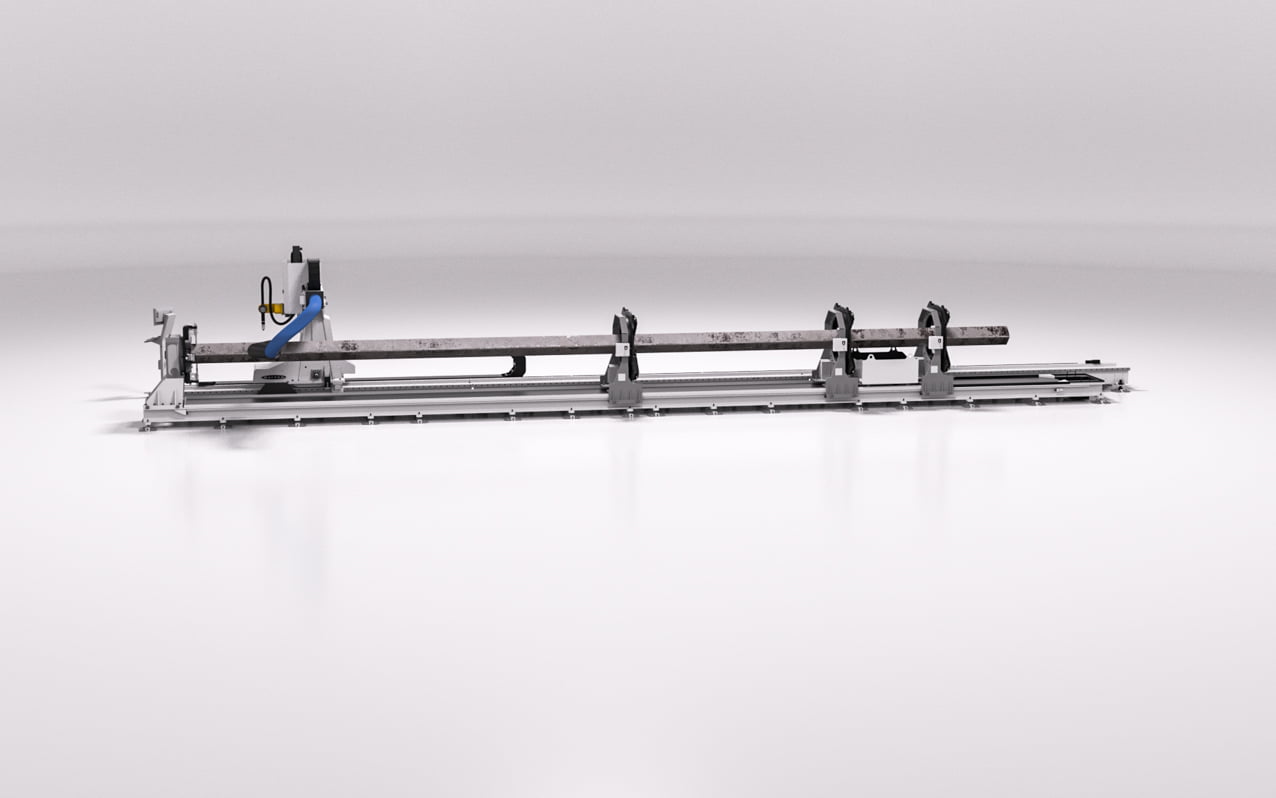

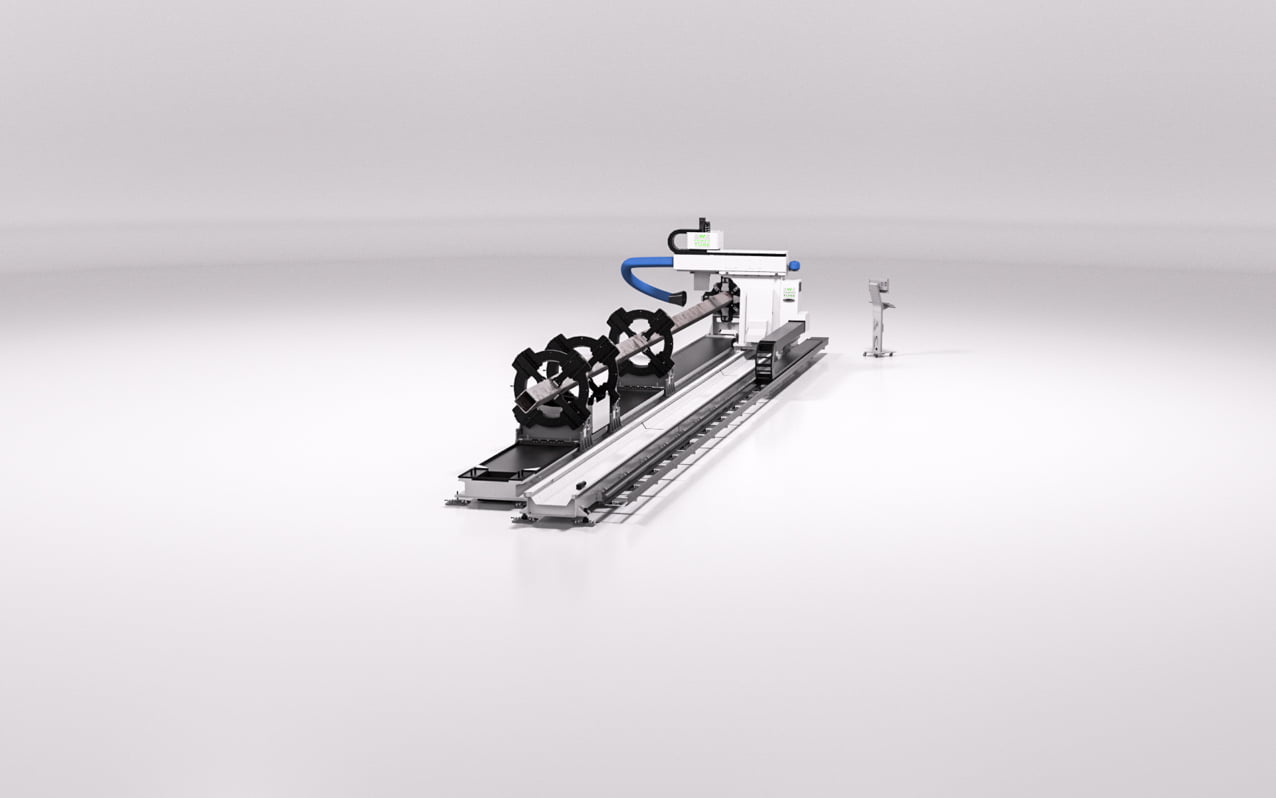

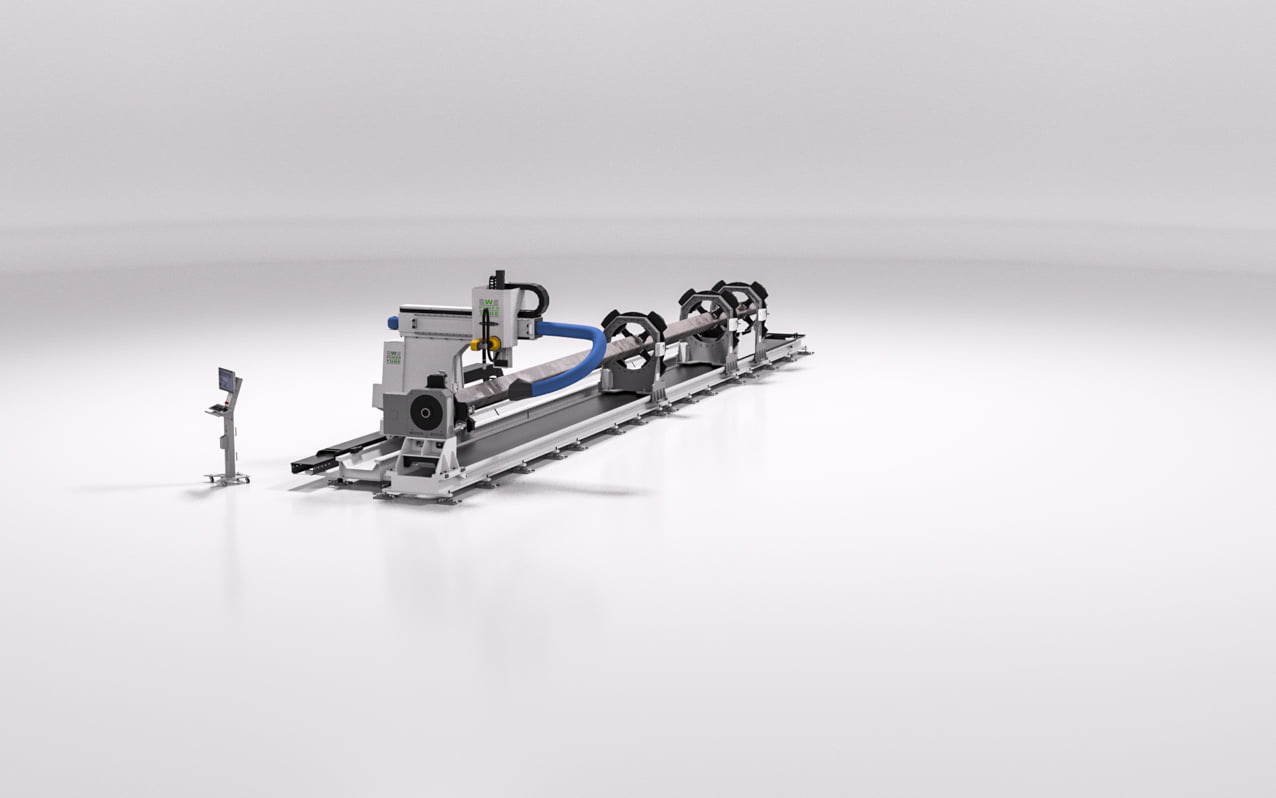

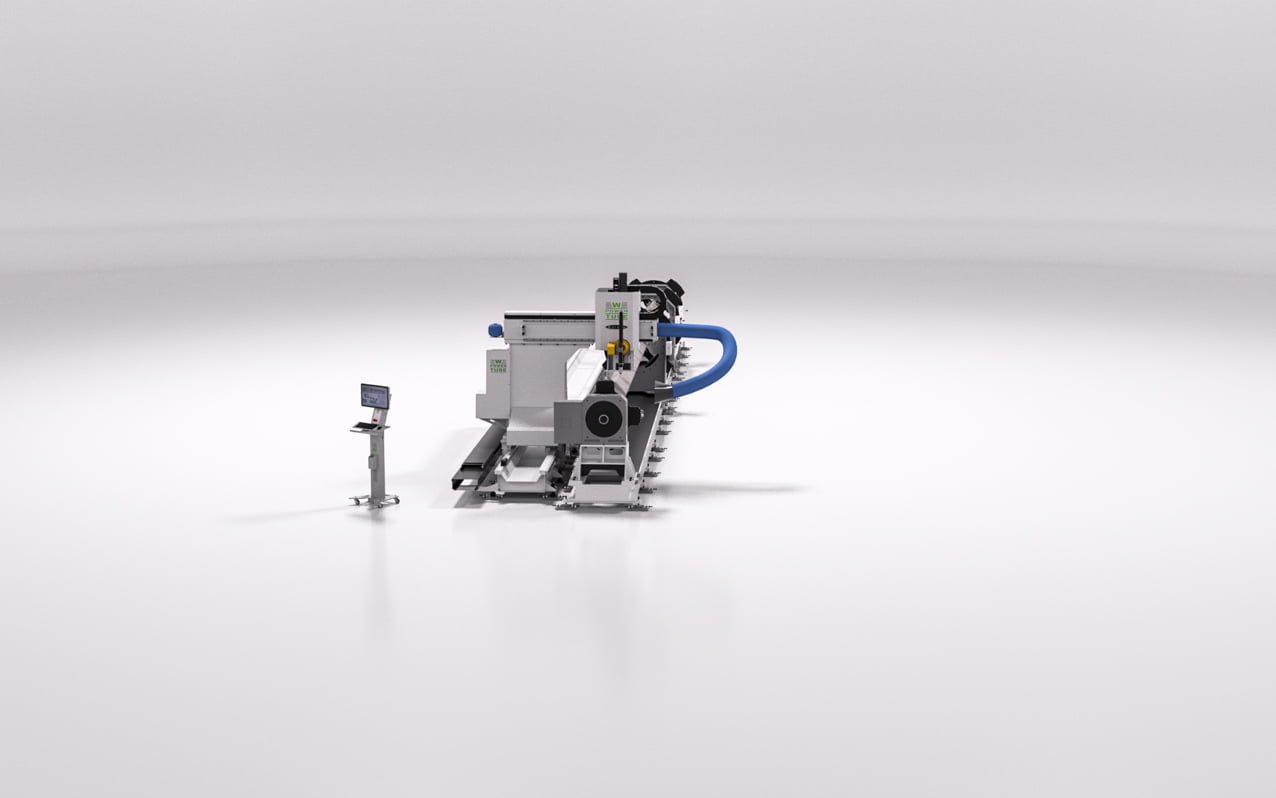

The W-TUBE SERIES plasma tube cutting machine is built for heavy-wall, large-diameter tube and pipe, as well as open profiles and heavy sections. It processes round tube from 1.97" to 23.62" OD (Ø 50–600 mm), square tube from 1.57" × 1.57" to 16.53" × 16.53" (40 × 40 to 420 × 420 mm), rectangular tube from 1.57" × 1.97" to 19.68" × 12.99" (40 × 50 to 500 × 330 mm) and open profiles including angles, channels and I/H-beams (L, UPN, HEA, HEB, IPN and IPE), with loading and unloading lengths up to 39 ft (12,000 mm). For smaller tube and fine detail, see the ITALO 200 fiber tube laser (up to 7.87" OD).
Strength and Versatility

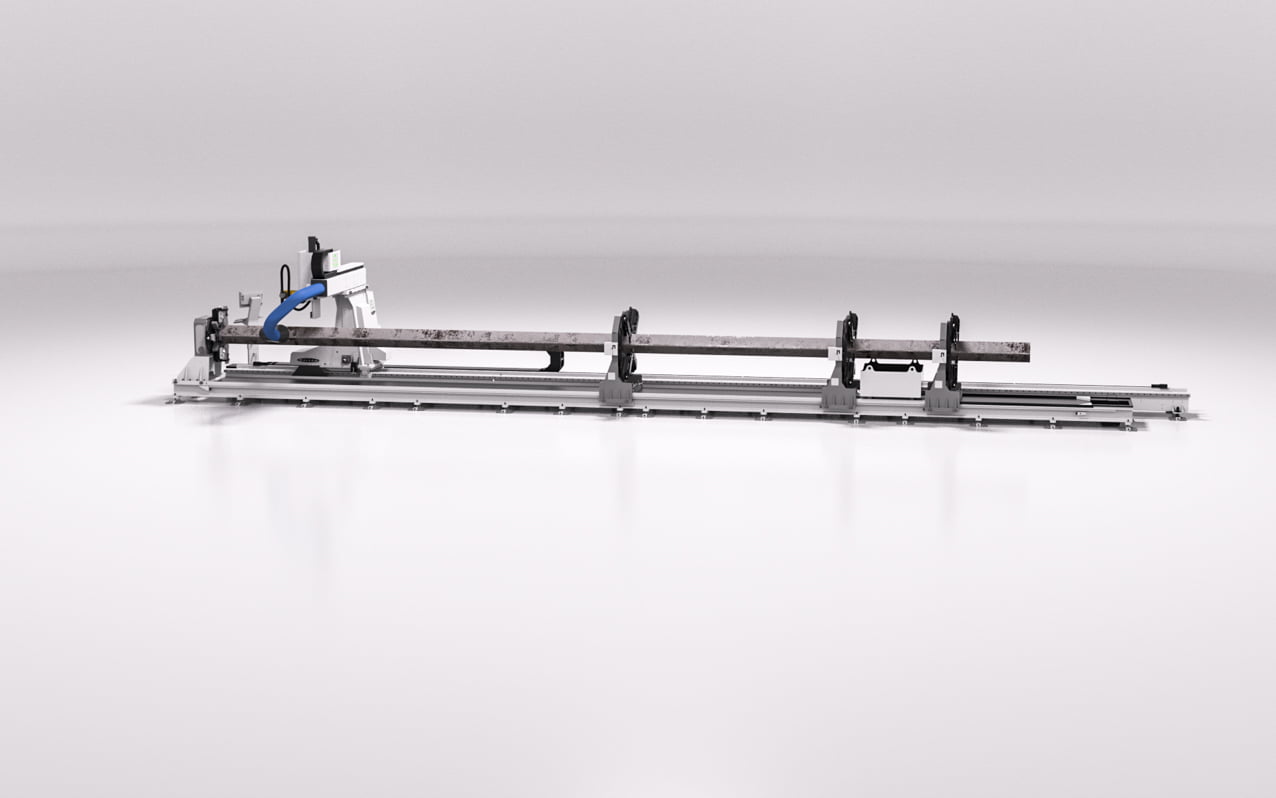

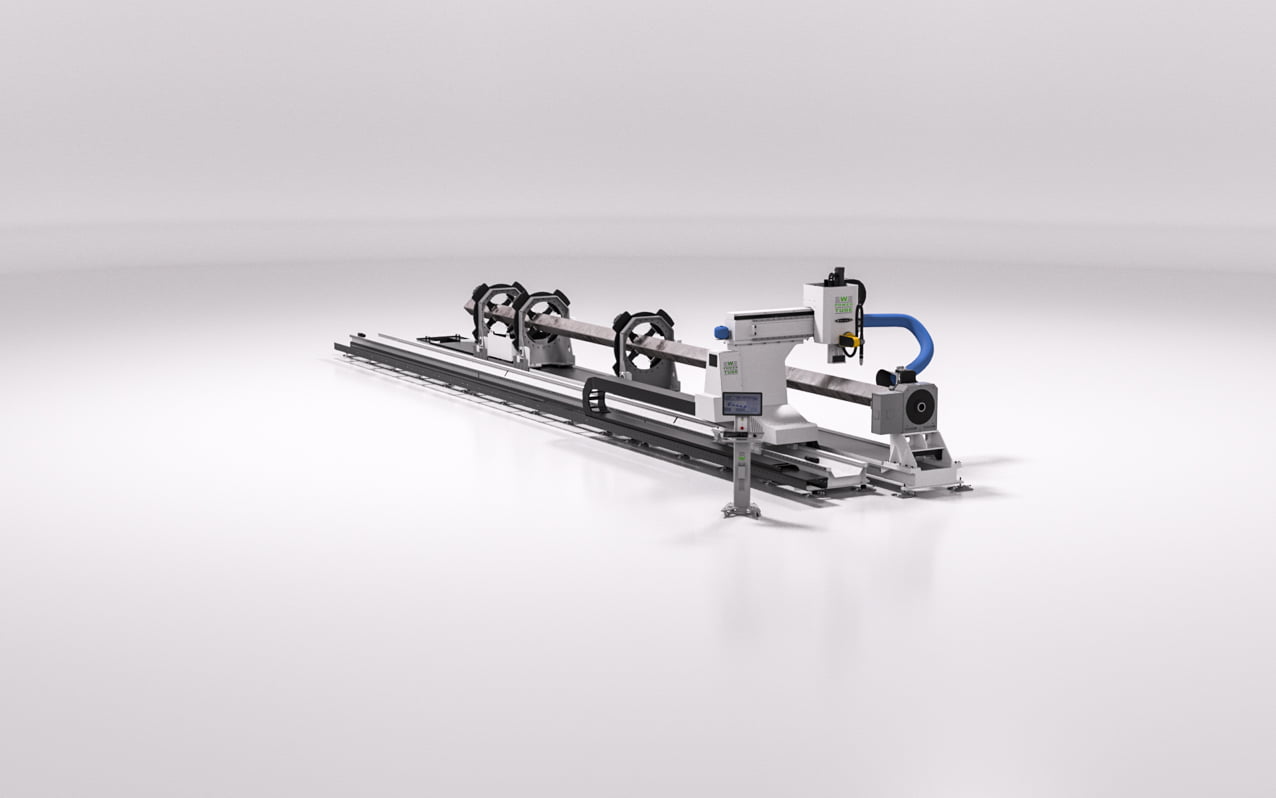

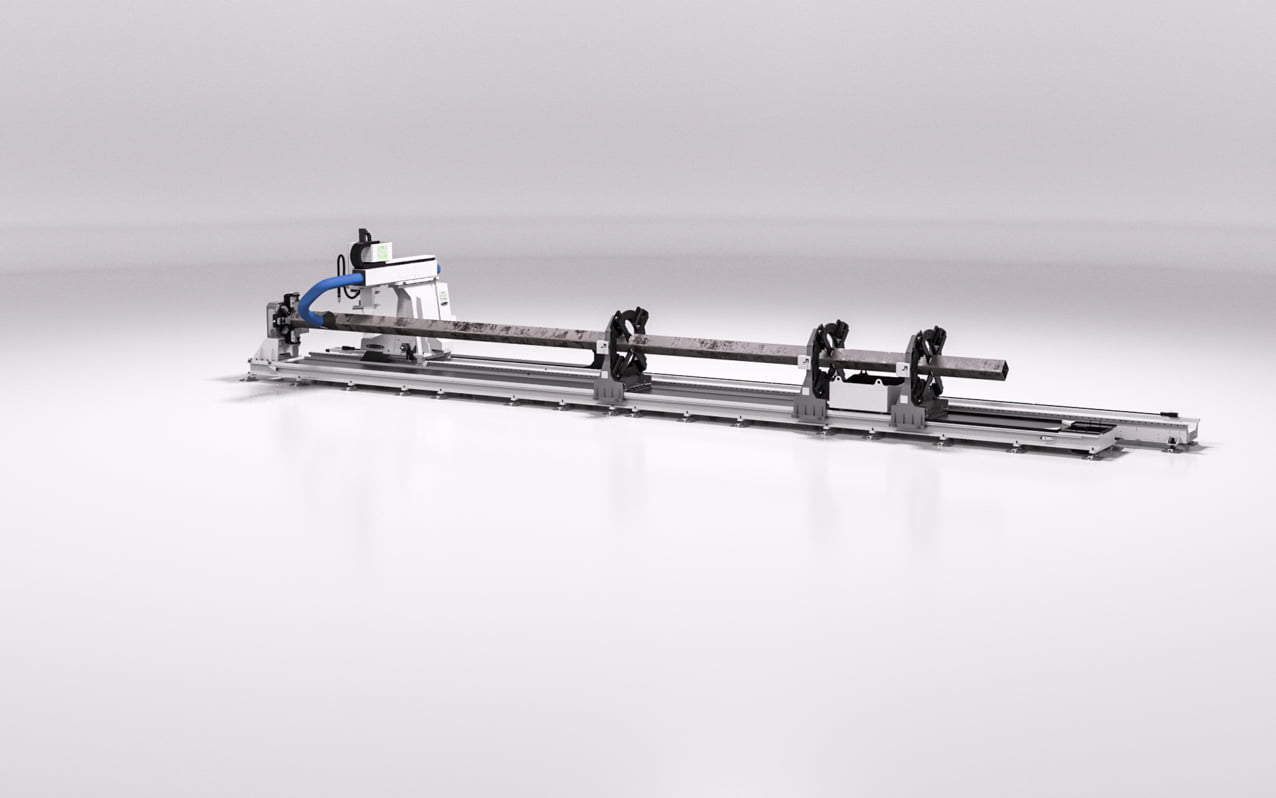

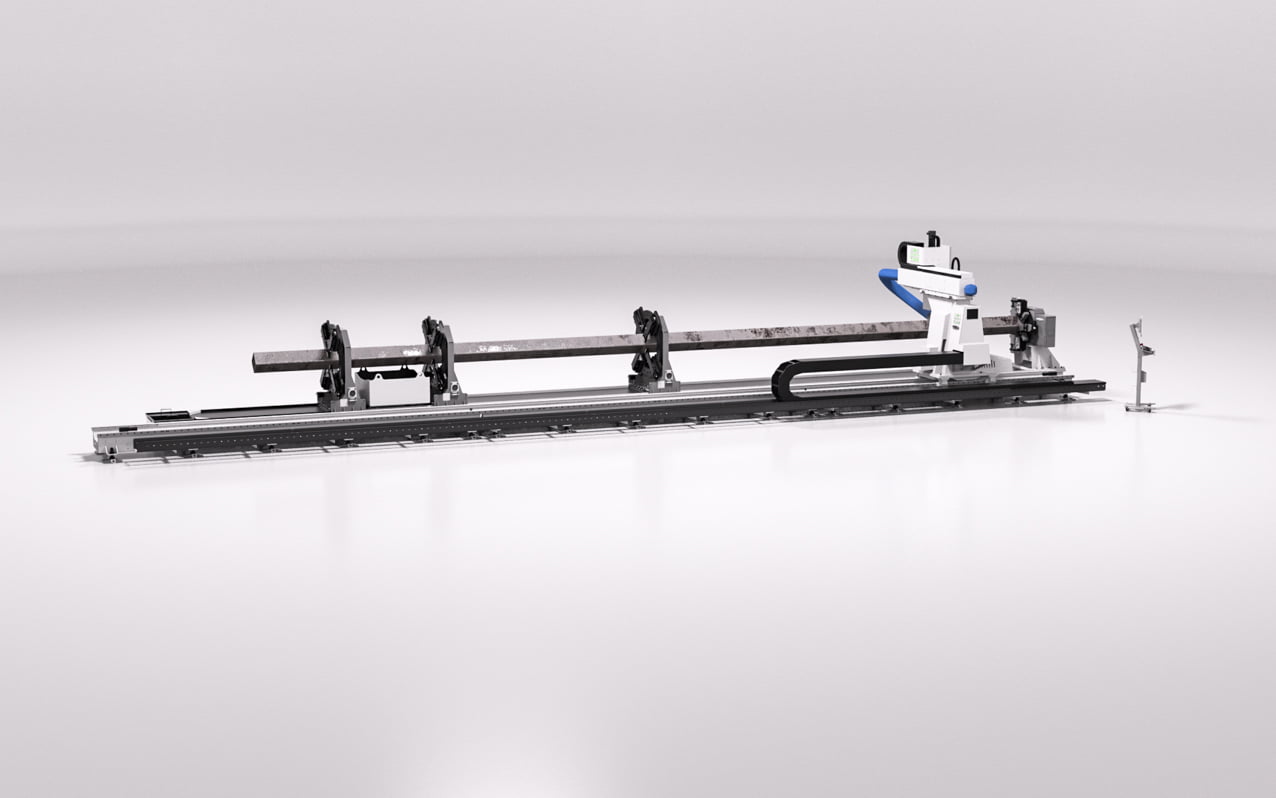

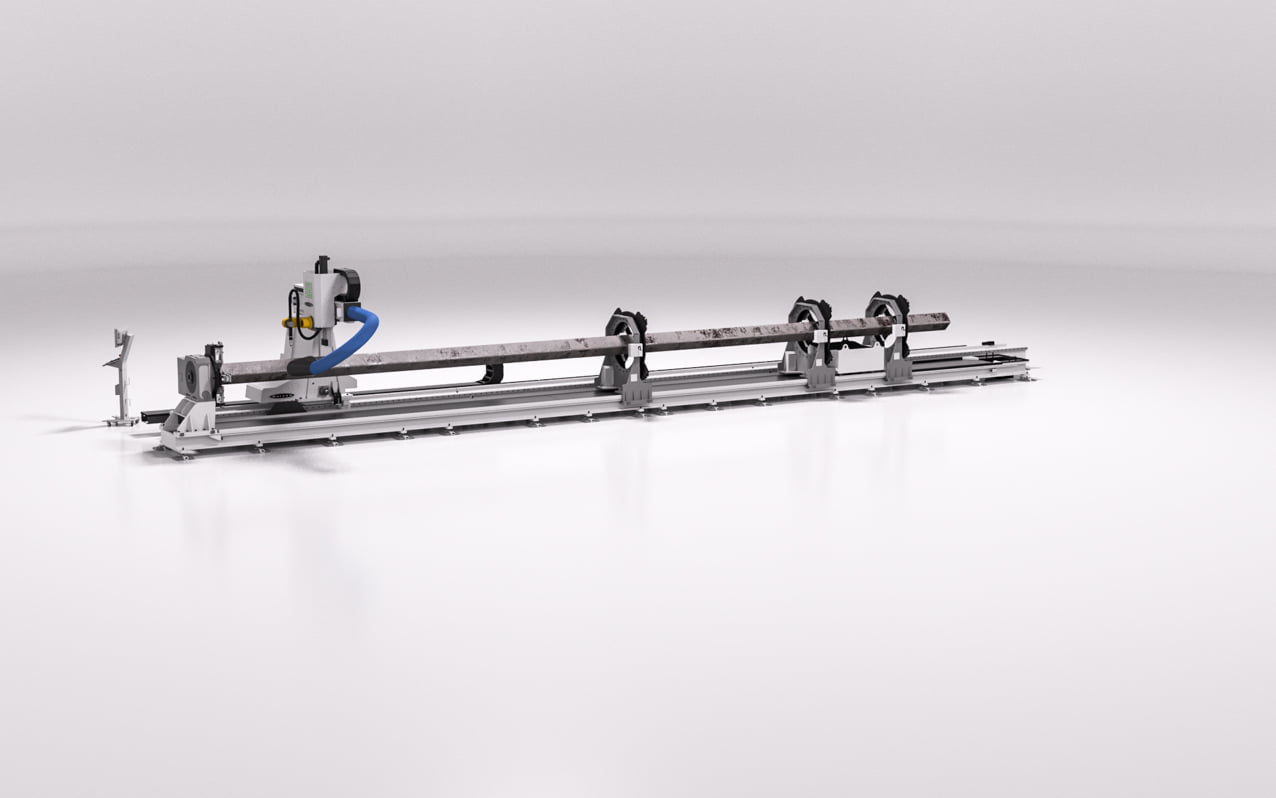

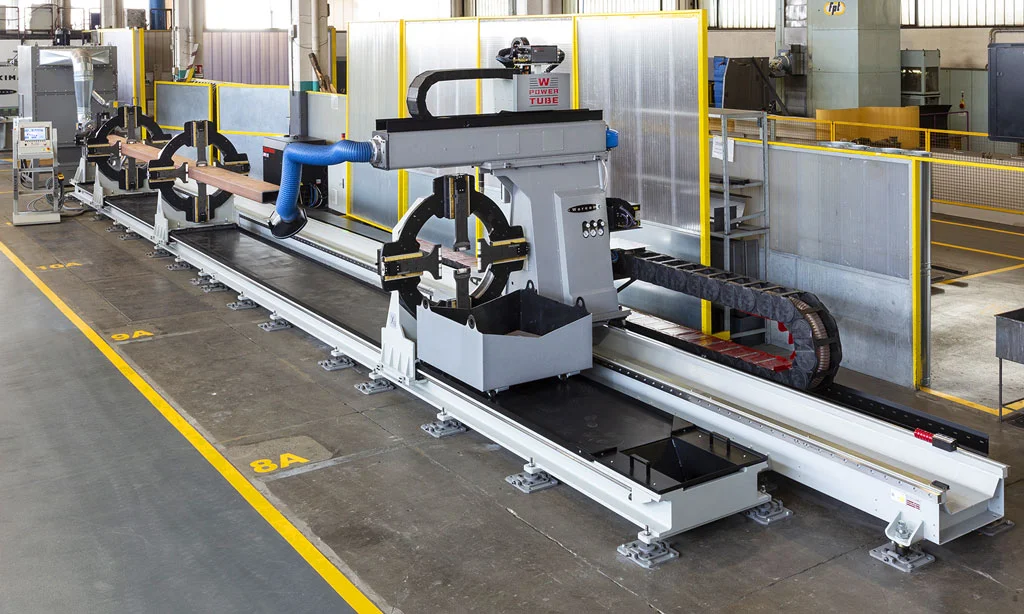

The tube is held by a self-centering chuck with 2+2 clamping and supported along its full length by one or more steady rests.
High-accuracy sensors and cameras detect geometric variations along the profile, letting the CNC adjust the X and Y axes on the fly for accurate positioning during cutting.
Flexibility and productivity: W-TUBE SERIES handles different tube sizes, sections and lengths, with the versatility heavy fabrication demands.
Safety and automation: integrated fume extraction and optional automatic clamping improve operator safety and reduce manual intervention.
Request a Quote for a W-TUBE SERIES Plasma Tube Cutter
REQUEST CATALOGUE
REQUEST QUOTE
Frequently Asked Questions
What tube sizes can the W-TUBE SERIES process?
W-TUBE SERIES processes round tube from 1.97" to 23.62" OD (Ø 50–600 mm), square tube from 1.57" to 16.53" (40–420 mm) and rectangular tube from 1.57" × 1.97" to 19.68" × 12.99" (40 × 50 to 500 × 330 mm). Maximum loading and unloading length is 39 ft (12,000 mm).
Can the W-TUBE SERIES cut bevels?

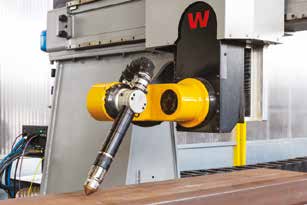

Yes. The 3D Bevel Cutting Head adds a 4th and 5th axis for programmable cutting angles up to 48° in every direction, with 360° rotation. It's designed for angled cuts and weld prep on tube, pipe and profiles.
Can the W-TUBE SERIES cut beams and open profiles?
Yes. W-TUBE SERIES processes open profiles including angles, channels and I/H-beams (L, UPN, HEA, HEB, IPN and IPE in European standards), as well as round, square and rectangular tube. It's built for large sections and heavy fabrication.
How is accuracy maintained on lengths up to 39 ft?
High-accuracy laser sensors and cameras on the gantry detect geometric variations along the profile, and dedicated software adjusts X and Y axis positioning on the fly to keep every cut accurately centered along the full 39 ft (12 m) length.
